HANDLE PIVOT
HANDLE PIVOT

HANDLE PIVOT

PWMA-0022

Regular price $140.00 USD Sale price$105.00 USD ⏱️ Save 25%
/
Shipping calculated at checkout.

This set includes all parts of the 600MH handle pivot.

Important note: if you have any questions or needs with respect to these parts, contact your dealer or us via our Contact Us page.

Also, if you encounter any problems with your 600MH, please refer to our Warranty Policy.

Click here to download the installation instructions.

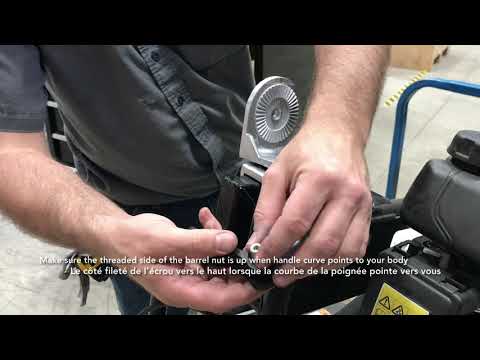

Note: Installing the cam levers can be tricky. We invite you to check the installation video above.

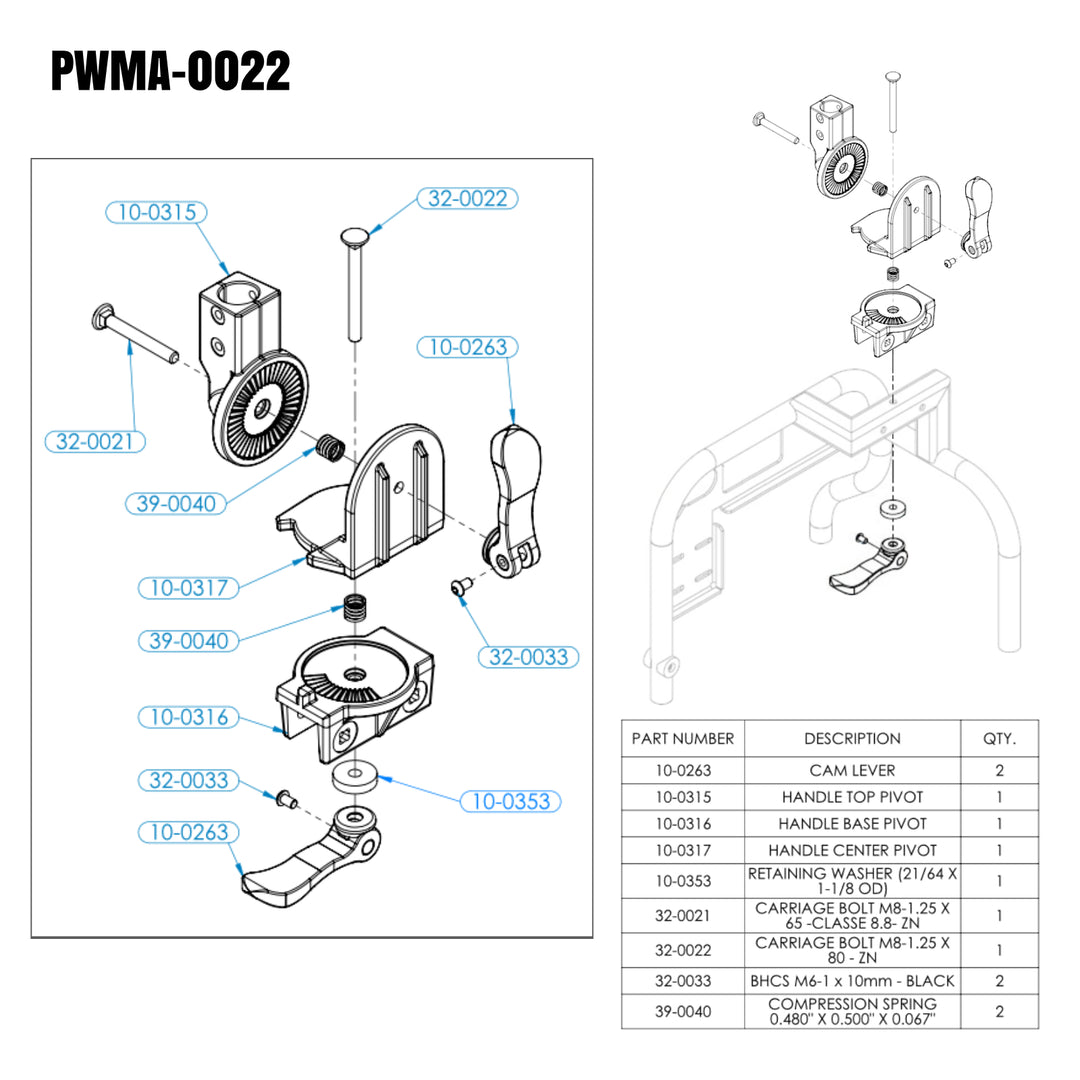

Included:

  • 2x 10-0263 - CAM LEVER
  • 1x 10-0315 - HANDLE TOP PIVOT
  • 1x 10-0316 - HANDLE BASE PIVOT
  • 1x 10-0317 - HANDLE CENTER PIVOT
  • 1x 10-0353 - RETAINING WASHER (.33 X 1-1/8) - ZN
  • 1x 32-0021 - CARRIAGE BOLT M8-1,25 X 65 MM - CLASS 8.8 - ZN
  • 1x 32-0022 - CARRIAGE BOLT M8-1,25 X 80 MM - CLASS 8.8 - ZN
  • 2x 32-0033 - BHCS M6-1,0 X 10 MM - BLACK
  • 2x 39-0040 - COMPRESSION SPRING 0.480 X 0.050 X 0.067
